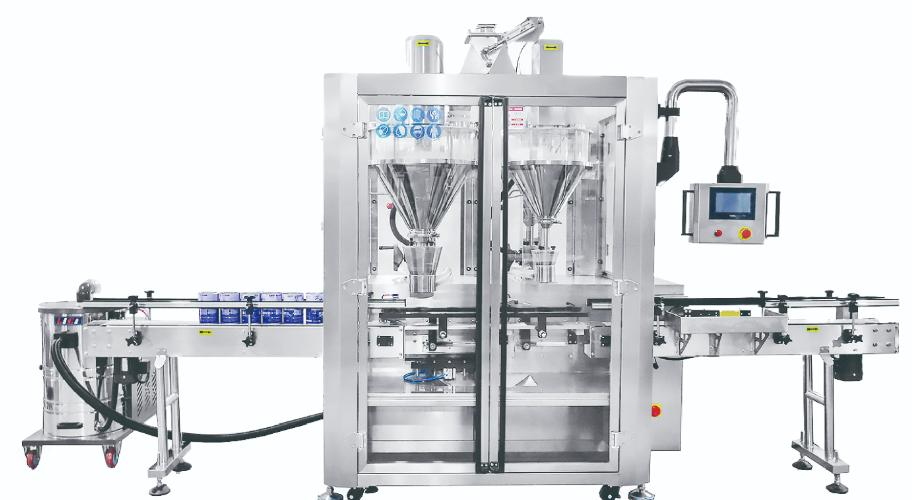

Automatic Screw Metering Filling Machine（Weighing Type）

Automatic can feeding → Precise positioning → Can supporting → Vibration → Filling → Weighing feedback (optional) → Can discharge
It can be integrated with other equipment to build a full automatic canning production line.
Suitable for filling eye shadow powder, glitter powder, pepper powder, milk powder, chicken powder and other powder materials.

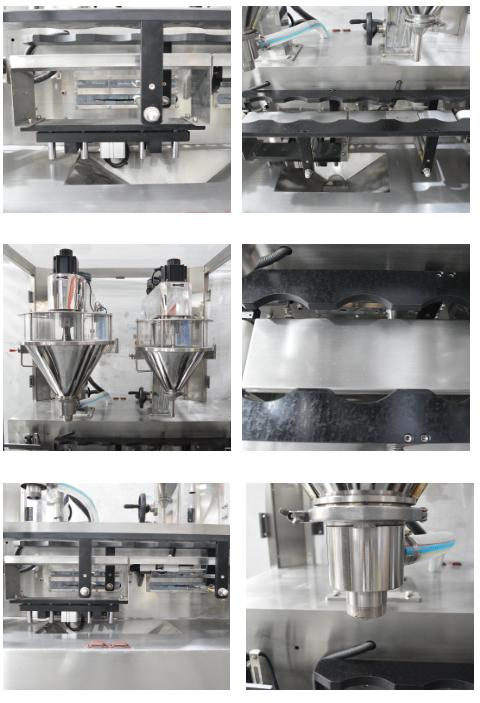

Feature

Servo and pneumatic systems control can holding and horizontal can conveying, featuring accurate positioning and high speed.

Servo motor and servo drive control the auger screw, delivering stable performance and high precision.

Full stainless steel construction; horizontally open hopper (polished internally and externally) for easy cleaning.

PLC control with touchscreen HMI for simple operation.

High-response weighing system ensures high canning speed and outstanding filling accuracy.

Filling heads are equipped with handwheels for height adjustment, enabling easy filling for various can types.

Dust removal device is optional, which can connect to negative pressure pipelines to prevent dust pollution.

Horizontal linear structure, small footprint and easy to clean.

Fixed auger mounting structure, no metal contamination during filling.

Working process: Can feeding → Can holding → Vibration → Dosing filling → Weighing feedback → Check weighing → Rejection of out-of-spec products → Can discharge
