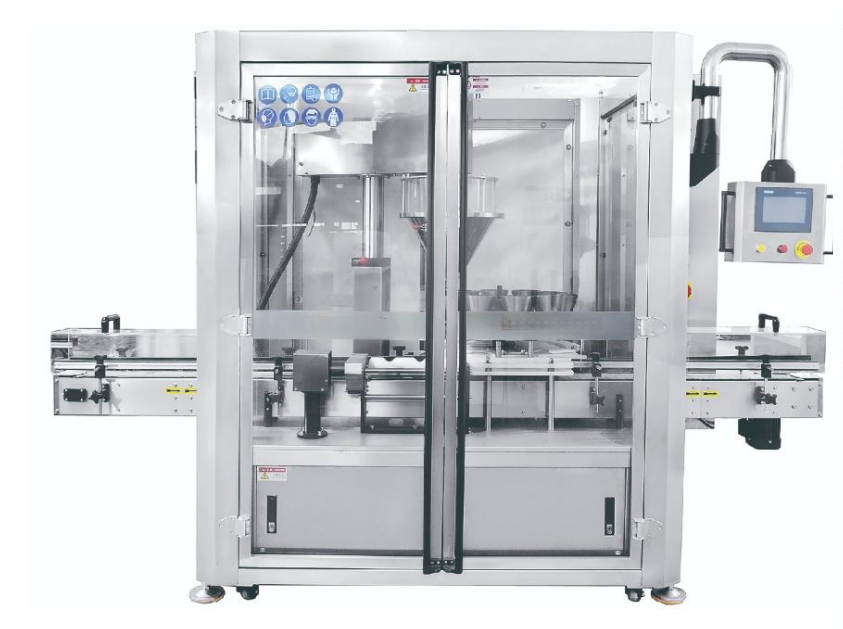

Rotary Powder Filling Machine

This automatic filling machine is designed in compliance with GMP standards. It can form a complete production line when matched with bottle sorters, capping machines, labeling machines and other equipment. It is suitable for canned powder materials in food, pharmaceutical and daily chemical industries, including milk powder, condiment powder, talcum powder, flour, medicinal powder, tooth powder, milk tea powder, pearl powder, nutrition powder, meal replacement powder, pesticide and monosodium glutamate.
The machine frame is constructed of 304 stainless steel. Motors, cylinders, electric and pneumatic components adopt well-known brands, and customer-specified brands are acceptable.

Equipment Advantage

1.Complies with GMP standards and food hygiene certification. Product contact parts are 304 stainless steel, compatible with mildly corrosive chemical products.

2.PLC & touchscreen control, stable operation, strong anti-interference, high weighing accuracy and user-friendly HMI.

3.Stepless adjustment of filling weight, flexible switching of working status; storage for 10 sets of recipe parameters.

4.Servo-driven filling screw: precise positioning, high accuracy, fast speed, high torque, long service life and adjustable speed.

5.Mixing system uses Taiwanese maintenance-free reduction motor: low noise and lifelong maintenance-free performance.

6.Weighing feedback & specific gravity tracking design. It automatically adjusts filling weight when materials change.

7.Fully sealed composite hopper with glass and stainless steel side doors for clear material observation; dust-tight structure to prevent powder leakage. Equipped with dust filter and dust removal system to protect workshop environment.

8.Quick changeover of screw accessories, handling materials ranging from ultra-fine powder to small particles.

9.Chain plate conveyor for container transport with screw distribution and positioning, high automation level.
