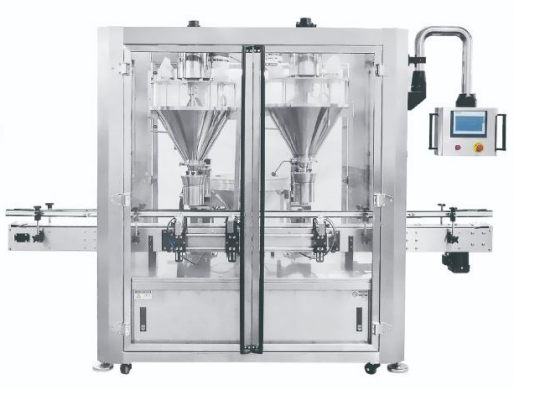

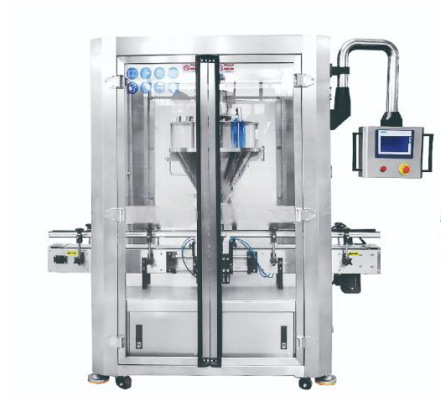

Automatic Screw Metering Filling Machinee

This series of machines is newly designed. It adopts the structure with the traditional turntable feeding placed on one side. Equipped with dual-auger filling for two production lines (main filler + auxiliary filler) and our original feeding system, the machine maintains high filling accuracy and eliminates the tedious cleaning work required for turntables.

It can achieve precise filling for powder products such as milk powder, protein powder, seasonings, dextrose, rice flour, cocoa powder and solid beverages.

Feature


All stainless steel structure; horizontal open type material hopper, easy to clean.Servo motor and servo drive control screw;servo control turntable work, performance is stable.Adopt reliable PLC control, accurate servo system, professional screw metering, high-end weighing system, international brand electrical appliances, ensure the machine can continuous working 24 hours a day.Equipped with a reasonable handwheel to adjust the height of the machine.Weight selection device, to ensure each product is qualified.A variety of product adjustment parameters can be stored,Store up to 10 formulations.Replace spiral accessories, can adapt to ultra-fine powder to small particles and other materials.




Filling Machine Workshop

Filling machine shipment

Patent Certificate for Filling Machine
