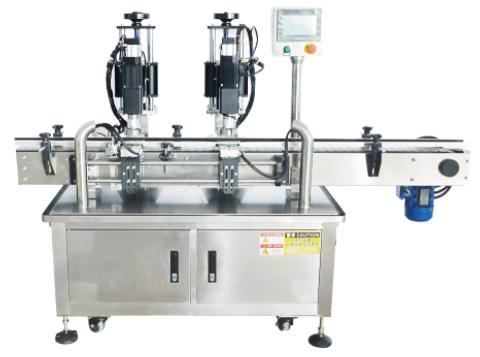

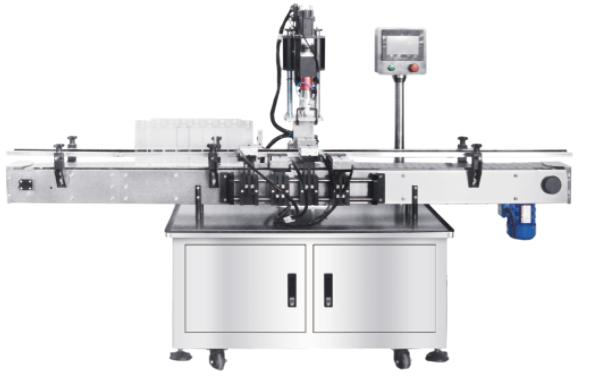

Single/Double Servo Capping Machine

This fully automatic robotic capping machine is designed for threaded plastic caps and metal caps on glass bottles. It adopts air gripper balanced screw capping structure to apply even force during capping. Equipped with servo cap picking and servo torque capping, it delivers stable performance and high capping quality. The machine supports automatic bottle feeding and automatic cap sorting. It can be equipped with an automatic cap supply system as required, suitable for food, pharmaceutical and cosmetic production lines.

Features


1 .Human machine interface setting, intuitive and convenient operation, PLC control and accurate action;

2. Frequency control, production speed adjustment, automatic counting;

3.Automatic stop function, no bottle without screw cap;

4.Using SUSA04 and 316L stainless steel to meet GMP requirements.
