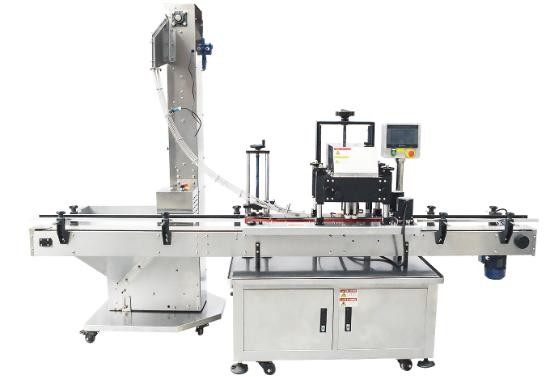

Fully Automatic Clamping Rotary Capping Machine

Our automatic screw capping machine is built on mature capping technology.
It realizes automatic bottle feeding, cap sorting, cap feeding and torque-controlled capping.
Featuring stable performance, high efficiency and simple operation, it works for bottles of various materials and sizes in food, pharmaceutical and cosmetic industries.
Pressure of chuck, nozzle and capping head is adjustable.
This capper can integrate smoothly with other packaging machines; dust cover is optional.

Features

1. The machine is mainly composed of bottle conveying mechanism, cap sorting and feeding mechanism,clamp bottle conveying mechanism,rubbed cap mechanism, and electronic control system. High degree of automation, reasonable design, compact structure, easy operation;

2. The machine frame, components and shell are mainly made of high- quality stainless steel, beautiful appearance, easy to clean, and meet theGMPrequirements;

3.Adopting four-wheel clamping rotation, the structure is simple and reasonable, the performance is stable and reliable, and the working efficiency is high. The twist-type screw cap technology effectively solves the drawbacks of the traditional capping machine such as cap skidding, broken, etc;

4. Capping mechanism spacing, height can be quickly adjusted, can adapt to different specifications of the bottle and cap;

5. The cover feeding mechanism is equipped with a photoelectric sensing safety protection device, which can control the bottle handling mechanism to realize the self-protection function of "start machine without cover to feeding ,and stop feeding when caps are full."to enhance the stability and reliability of theequipment.
