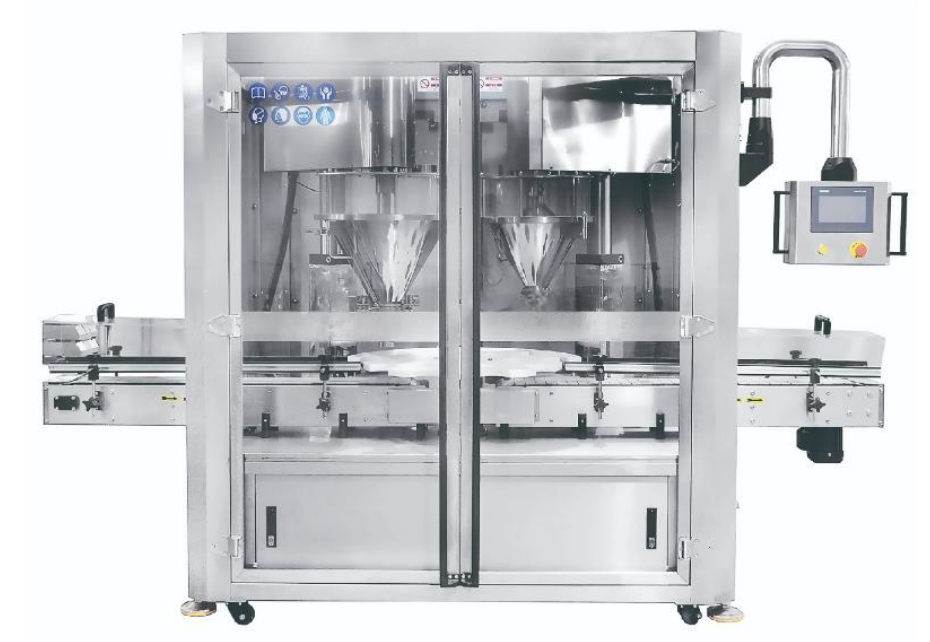

Rotary Table Powder Filling Machine(Weighing Type)

This automatic filling machine is designed in compliance with national GMP standards. It can form a production line when matched with bottle unscramblers, capping machines, labeling machines and other equipment.
It is suitable for filling powdered materials in food, pharmaceutical, daily chemical and other industries, such as milk powder, seasonings, compounding powder, dental powder, nutritional powder, meal replacement powder, etc.
The main body of the machine is made of 304 stainless steel. Motors, air cylinders and electrical components are optional from well-known brands; customized brands specified by customers are also available.

Feature

Complies with national GMP standards and can pass national food hygiene certification.
All parts in contact with materials are made of 304 stainless steel. It can be used for packaging of general non-corrosive chemical products.
Adopts PLC & touch screen control system, featuring stable operation, strong anti-interference capability, high weighing accuracy and user-friendly HMI.
Packaging weight can be steplessly adjusted at any time, and working status can be switched freely. Up to 10 sets of formula parameters can be stored.
The filling screw is driven by a servo motor, with advantages of precise positioning, high accuracy, fast speed, large torque, long service life, adjustable rotating speed and excellent stability.
Equipped with Taiwan-made maintenance-free geared motor for mixing: low noise, long service life and maintenance-free for lifetime.
Packaging weight can be adjusted when switching different materials.
Stainless steel side-open composite hopper, allowing clear observation of material status with zero dust leakage. The hopper is fitted with dust filter unit, and filling accessories are equipped with dust removal system to protect workshop environment.
Quick replacement of screw assemblies, suitable for filling various materials ranging from ultra-fine powder to small granules.
Packaging containers are conveyed by chain plate conveyor with photo-eye positioning and screw metering. High degree of automation.
