Vial Unscrambler

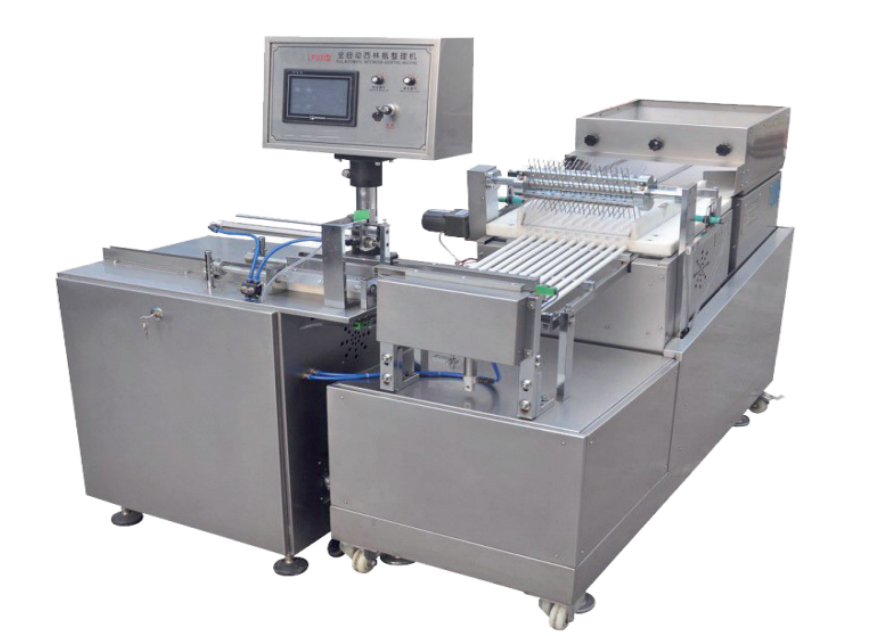

Machine Name: Automatic Vial Unscrambler
This automatic vial unscrambler is mainly used for injection vials. Disordered bottles are fed out from the hopper, buffered and pre-sorted by the vibrating plate, then transported along the track to the turnover mechanism. After orientation adjustment, bottles are pushed out neatly with necks upward, achieving a pass rate of over 99.9%.

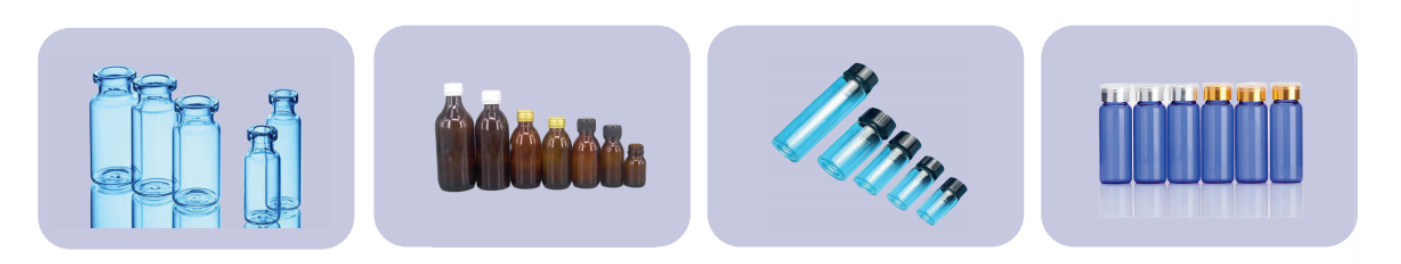

It is suitable for plastic and glass cylindrical bottles, square bottles and rectangular bottles. The machine can be linked with filling, labeling, cartoning and other equipment.

Features

1.Simple operation, compact structure and small footprint.

2.PLC control, high production efficiency, bottle orientation rate over 99.9%.

3.Auto standby for bottle shortage; automatic shutdown when bottle conveying overload occurs on connected equipment.

4.Adopts electromagnetic vibration feeding to prevent scratches on bottle surfaces and eliminate bottle breakage.

5.The outer cover is made of 304 stainless steel. Materials in contact with bottles comply with GMP requirements.

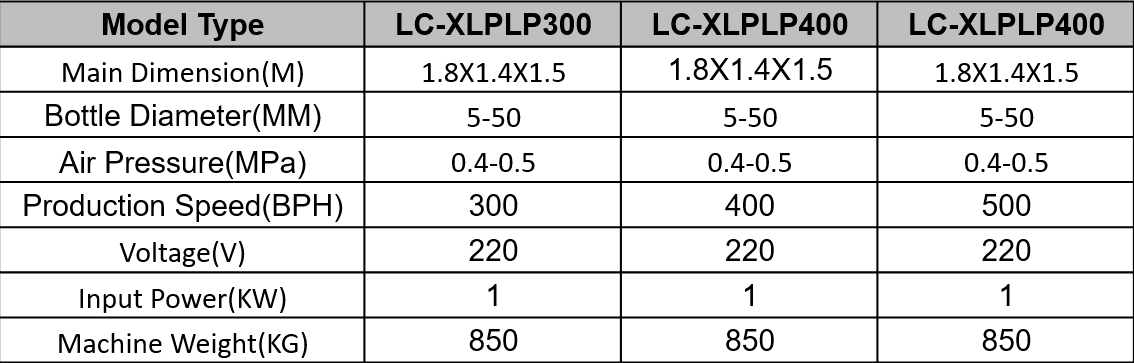

Parameters
