Labeling Machine Above and Below

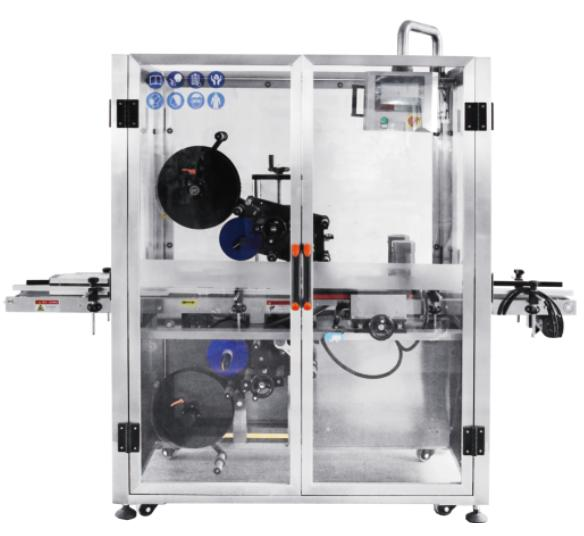

This top and bottom labeling machine applies labels on the top and bottom surfaces of flat products simultaneously. Equipped with high-precision servo labeling heads, Mitsubishi PLC & bilingual touch screen, it ensures stable label tension and accurate labeling. Optional feeder, product clamping mechanism and labeling molds are available. Widely used for leaflets, envelopes, greeting cards, cartons and other flat goods.

Features

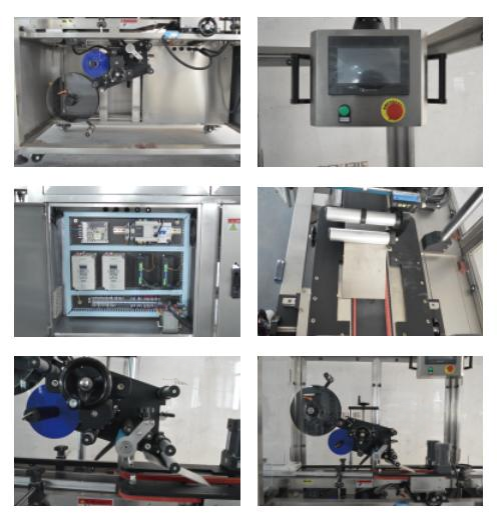

1.The labeling head can choose famous brand high precision servo motor, to realize the real closed loop control and the high precision subdivision. 2.Double-stage clutch design makes label tension more stable and easy to improve labeling accuracy.

3.The control system uses Japan Mitsubishi PLC, famous brand touch screen and Chinese-English bilingual operation interface.

4.The belt conveyor suitable for all kinds of flat products and one side labeling.Optional product clamp mechanism or labeling mold to achieve higher labeling accuracy.

5.Feeder device can be selected, suitable for leaflets,, envelopes, greeting cards, cartons and other products.

6.Fully enclosed frame, SCHMEASAL safety switch and feeder device can be selected, suitable for leaflets, envelopes, greeting cards, cartons and other products.
