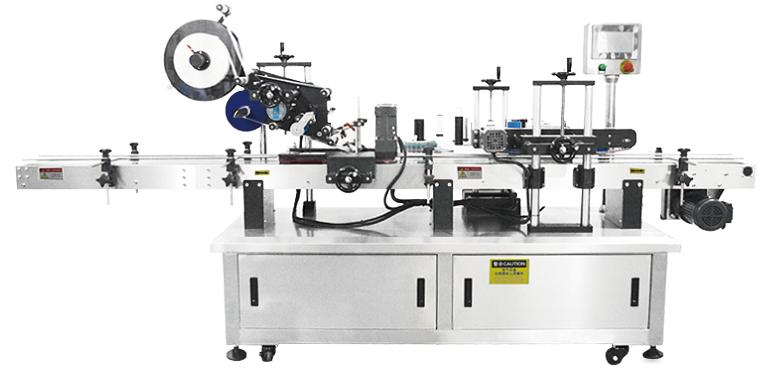

Three Sides Labeling Machine

Automatic self-adhesive three-sides labeling machine is non-standard to
customize,can achieve a multi-purpose function. The machine can be used in a wide range of products.Can be used to label
flank, top surface, one side and three sides of a variety of products, single
or multiple label heads can be used to set the parameters in the operating
interface. The machine can replace various labeling machines.

Features

1. The labeling head can choose famous brand high precision servo motor, to realize the real closed loop control and the high precision subdivision.

2.The belt conveyor suitable for all kinds of flat products and one side labeling.Optional product clamp mechanism or labeling mold to achieve higher labeling accuracy.

3.The control system uses Mitsubishi PLC, famous brand touch screen and Chinese-English bilingual operation interface.

4.The speed of conveyor, press belt and labeling can be stepless speed regulation. 5.Double-stage clutch design makes label tension more stable and easy to improve labeling accuracy
